特点和应用：Features and Applications

应用于380/440Vac三相三线连接的各类电源电子设备

Apply in various electronic equipments

同等功率下相对较小的体积

Relative small volume at equal power

主要可用来抑制工业电网通过电源线对设备的电磁干扰

Mainly used to suppress the EMI to theequipmentin industrial power net

对线一线和线―地间干扰具有优良的抑制能力

Provide high performance of effectivelysuppressing EMl both in line-to-line and linetoground.

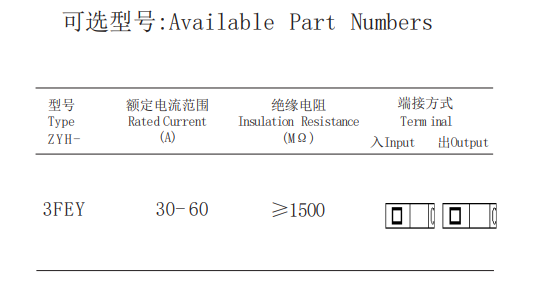

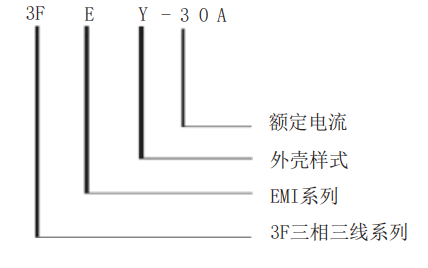

订购信息：Ordering Information

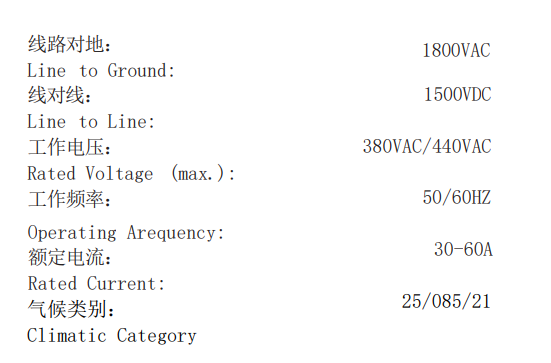

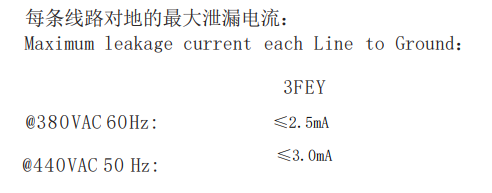

规格： Specifications

Hipot额定值（一分钟）：

Hipot rating (one minute):

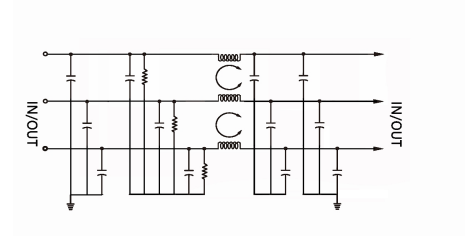

电路原理图Electrical Schematics

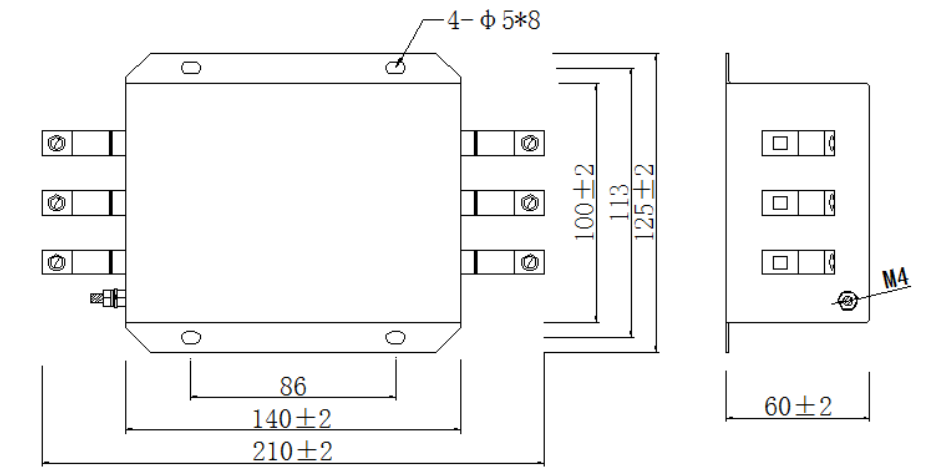

3FEY外壳样式：3FEY Case Styles

性能参数 Performance Data

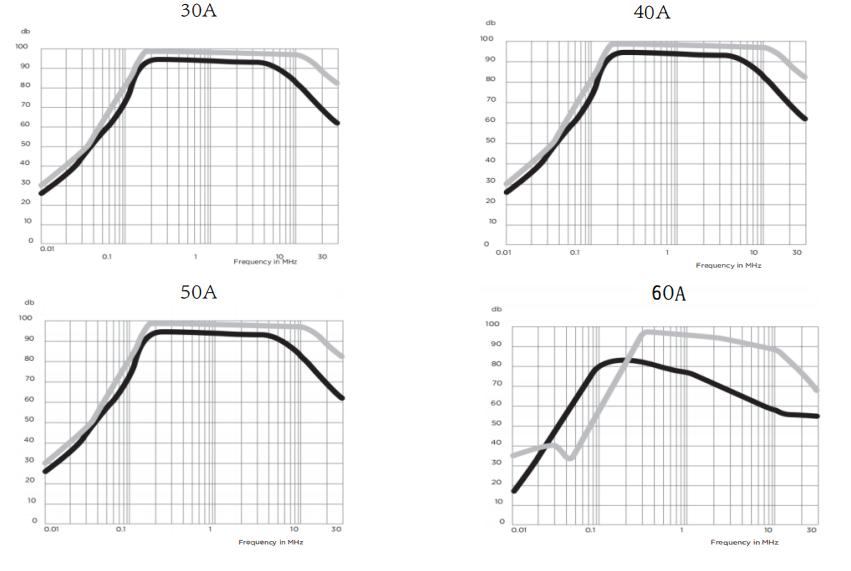

典型插入损耗 ypical Insertion Loss

在封闭的50欧姆系统中测量 Measured in closed 50 Ohm system

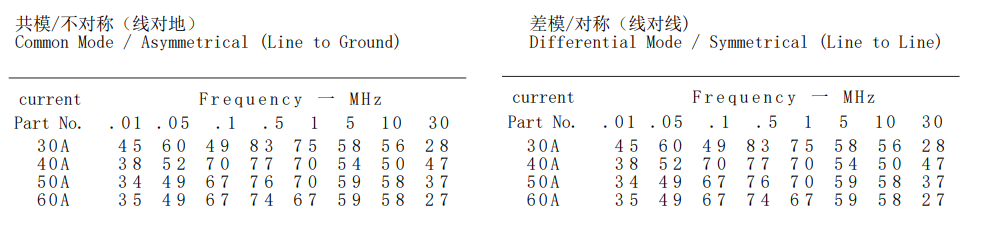

最小插入损耗 Minimum Insertion Loss

ZYH-3F(殴式端子)系列三相三线EMI电源滤波器 .pdf
