特点和应用：

Features and Applications

很高的差模和共模衰减特性

 very high differential and common mode attenuation

含有差模线圈，对低频具有很高的衰减

Good low-frequency attenuation for differential mode choke.

宽范围的衰减特性

 Broadband attenuation characteristics

适用于各种电子和数字设备(尤其是开关电 源)

Available for various digital systems(partically for switching power supplies)

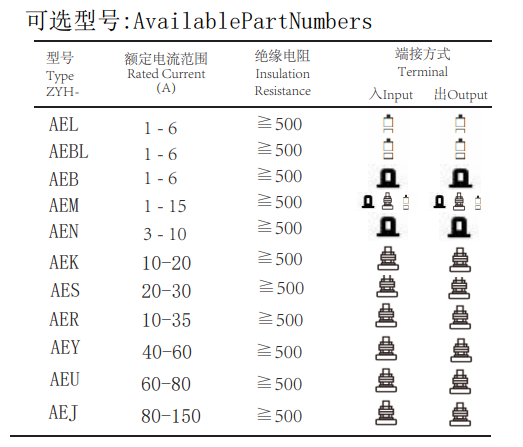

订购信息：Ordering Information

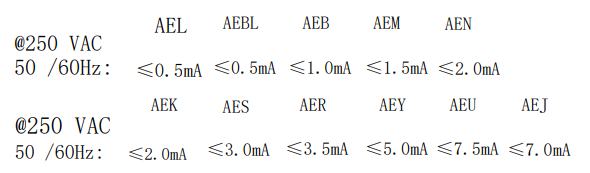

规格： Specifications 每条线路对地的******泄漏电流：

Maximum leakage current each Line to Ground：

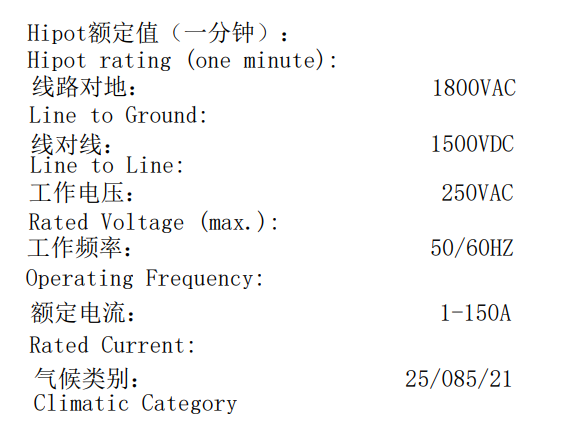

Hipot额定值（一分钟）：

Hipot rating (one minute):

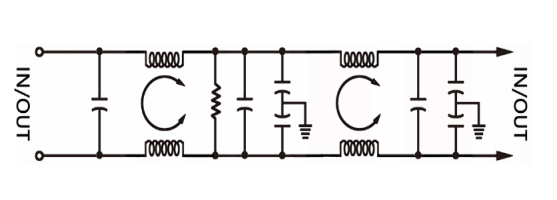

电路原理图Electrical Schematics

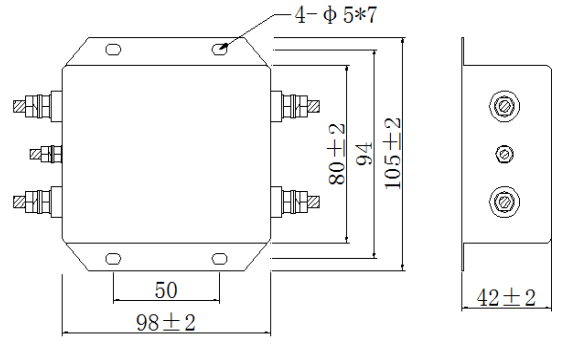

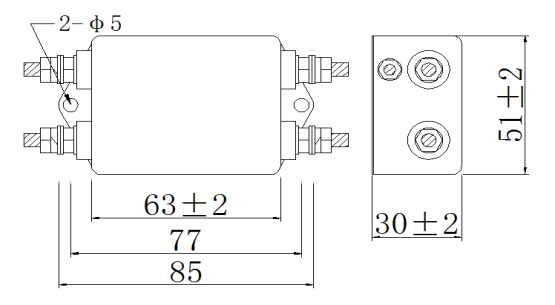

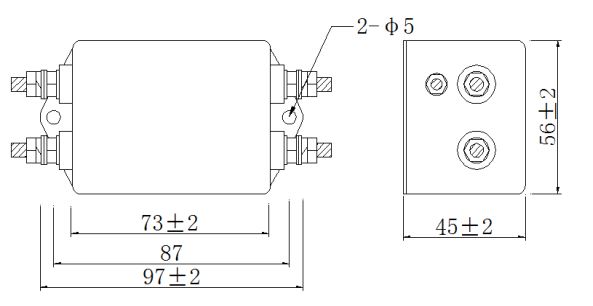

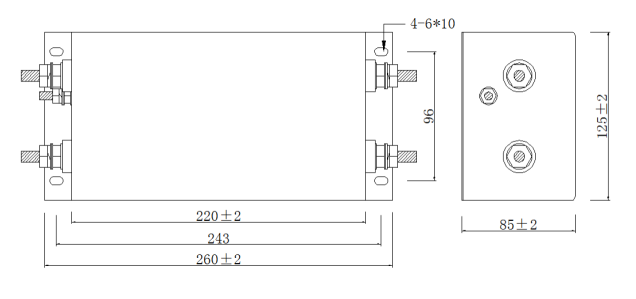

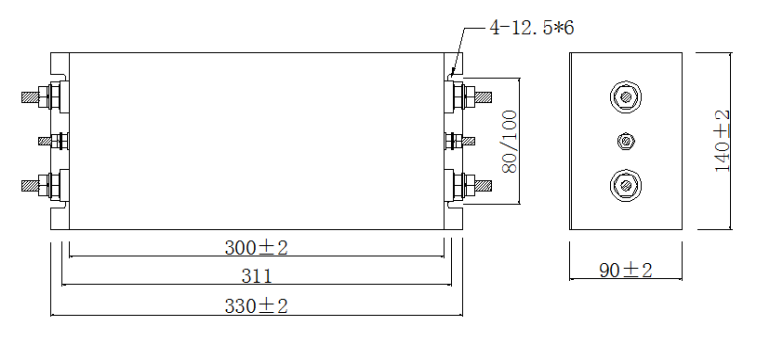

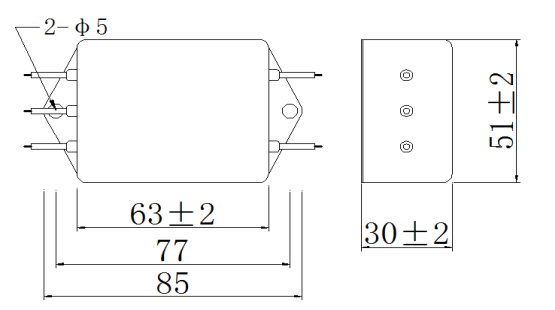

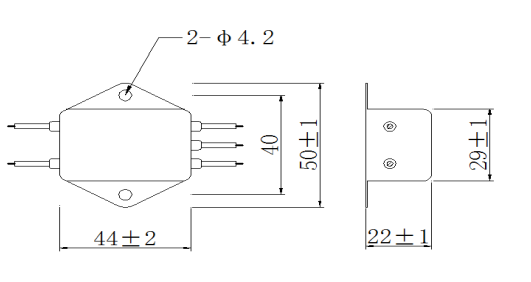

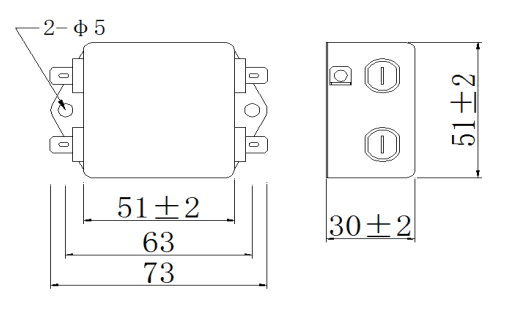

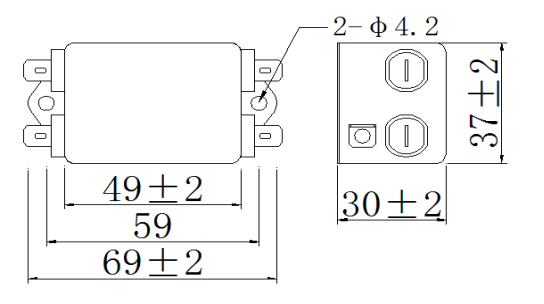

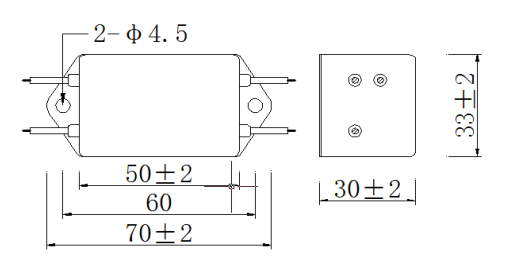

AEL外壳样式：AELCase Styles

AEBL外壳样式：AEBLCase Styles

AEB外壳样式：EB Case Styles

AEN外壳样式：EN Case Styles

AEM外壳样式：AEM Case Styles

样式1：CaseStyles One

样式2：CaseStyles Two

样式3：CaseStyles Three

AEK外壳样式：AEK Case Styles

AES外壳样式：AES Case Styles

AER外壳样式：AER Case Styles

AEY外壳样式：AEY Case Styles

AEU外壳样式：AEU Case Styles

AEJ外壳样式：AEJ Case Styles

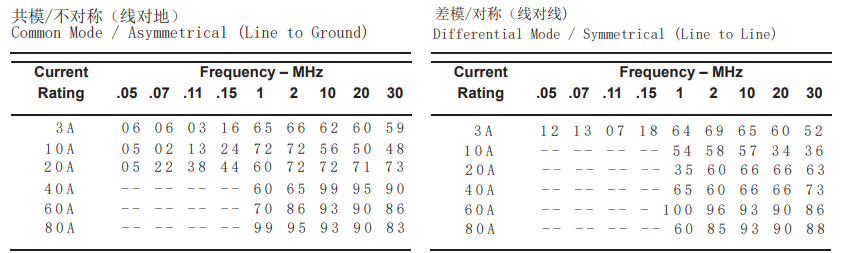

性能参数

Performance Data

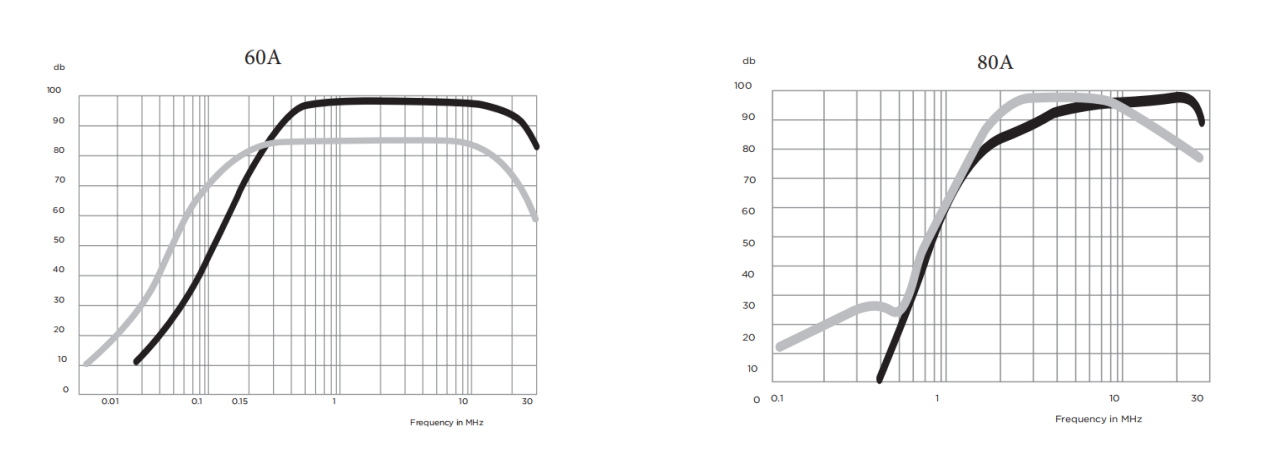

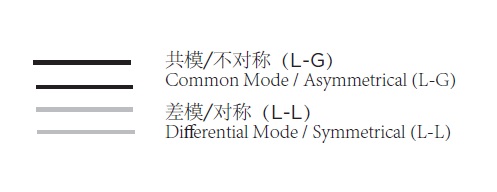

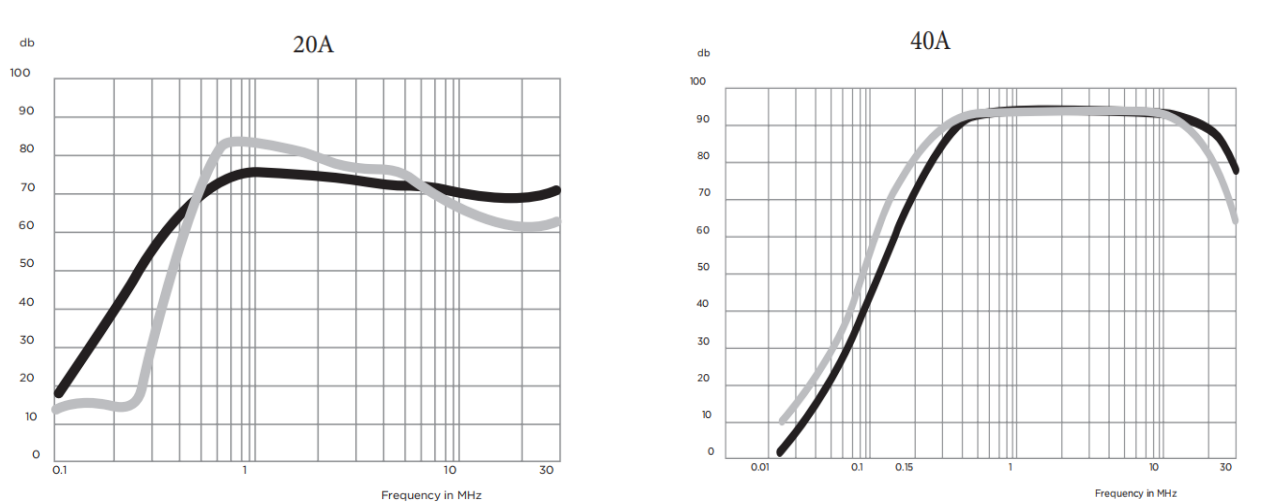

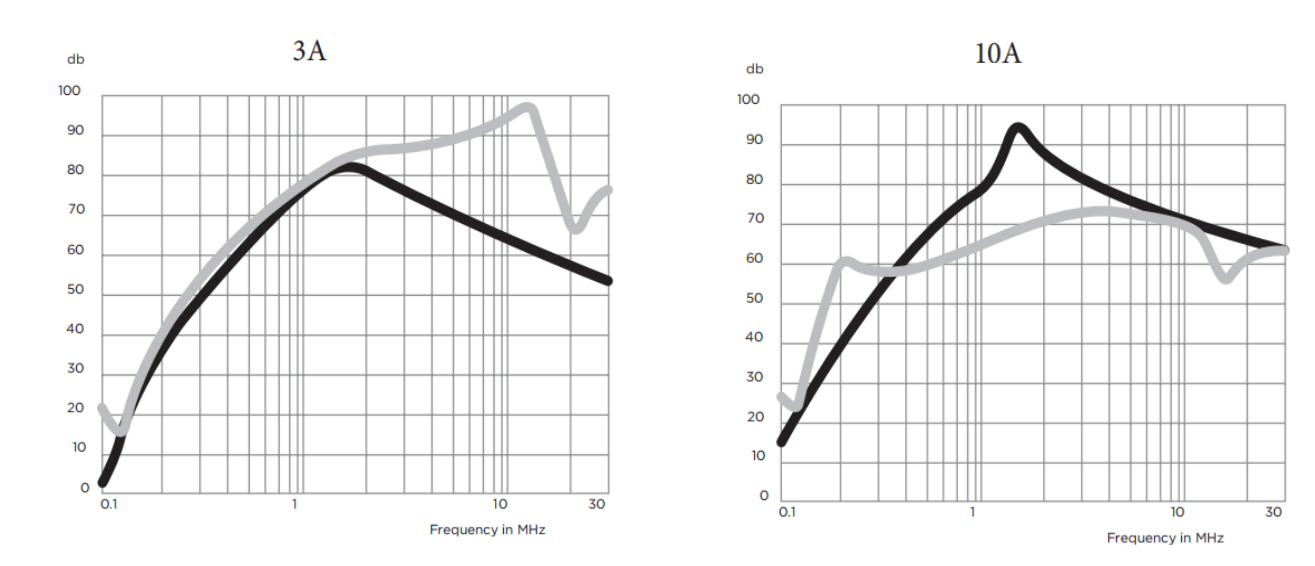

典型插入损耗

ypical Insertion Loss

在封闭的50欧姆系统中测量

Measured in closed 50 Ohm system

最小插入损耗 Minimum Insertion Loss

ZYH-A系列差模增强EMI电源滤波器.pdf
