产品详情
特点和应用：Features and Applications
适用于抑制电网及开关电源所产生的噪音和高频谐波
Applicable to suppressing noise and high frequency harmonic in power
较高的插入损耗，较小的泄露电流
Low leakage current with high insert lose of noise
能有效地抑制线与线，线与地之间的EMI噪音干扰
Control EMI interference between line to line，line to ground
小型电子设备和电子测量仪器、模块电源
Mini-electronic equipments and measuring instruments、module power supply

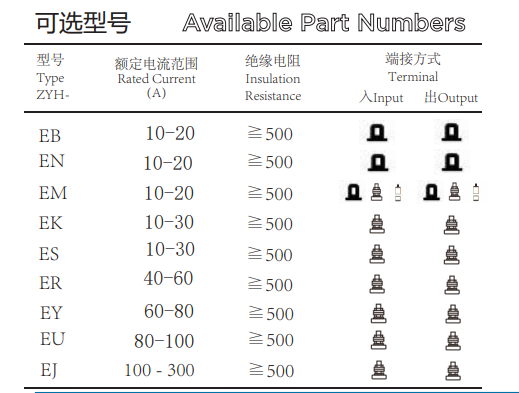

订购信息：Ordering Information

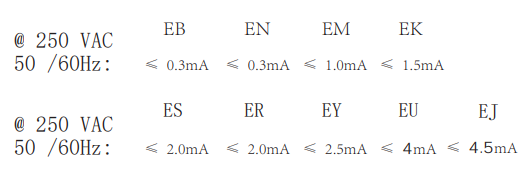

每条线路对地的******泄漏电流：
Maximum leakage current each Line to Ground：

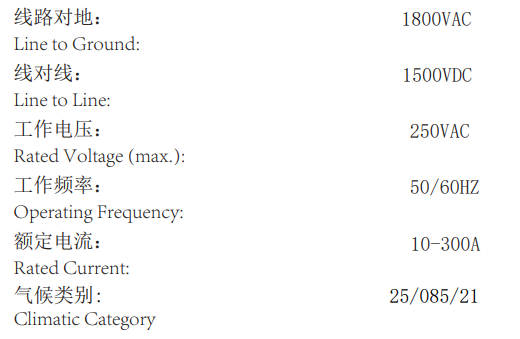

Hipot额定值（一分钟）：
Hipot rating (one minute):

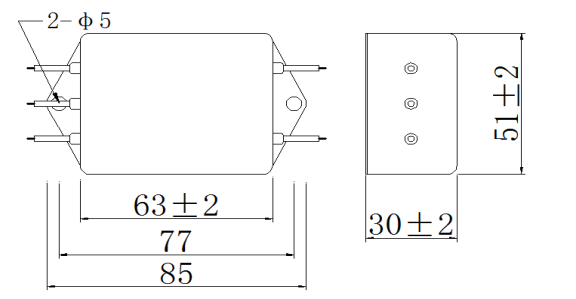

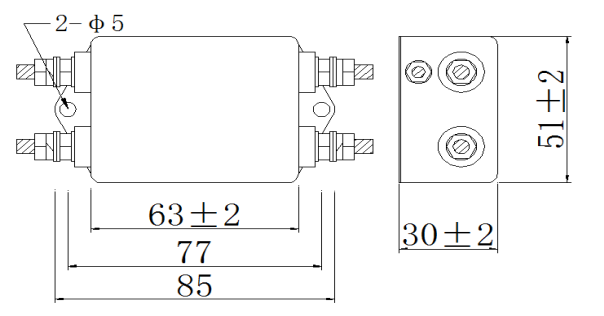

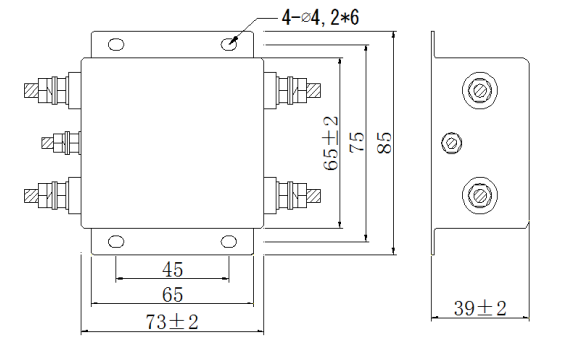

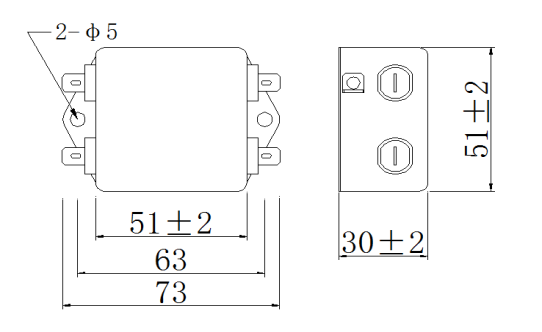

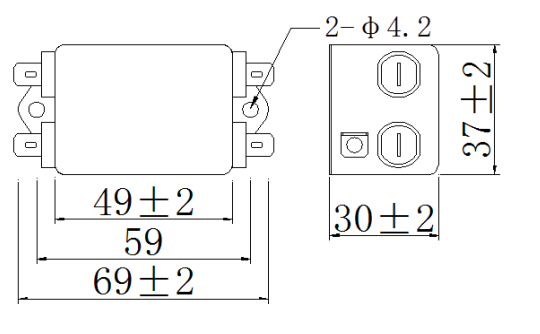

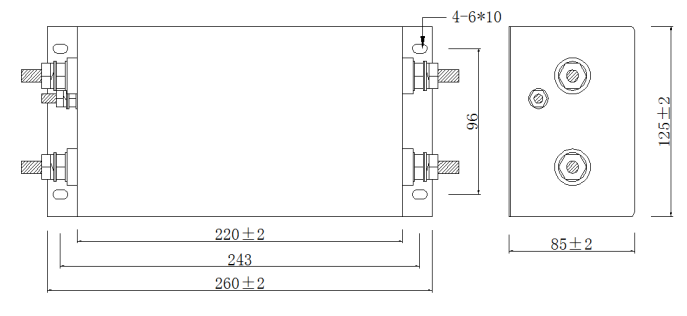

EB外壳样式：EB Case Styles
EN外壳样式：EN Case Styles
EM外壳样式：EM Case Styles
样式2：CaseStyles Two
样式3：CaseStyles Three
EK外壳样式：EKCase Styles
ES外壳样式：ES Case Styles
ER外壳样式：ER Case Styles
EY外壳样式：EY Case Styles
EU外壳样式：EUCase Styles
EJ外壳样式：EJ Case Styles

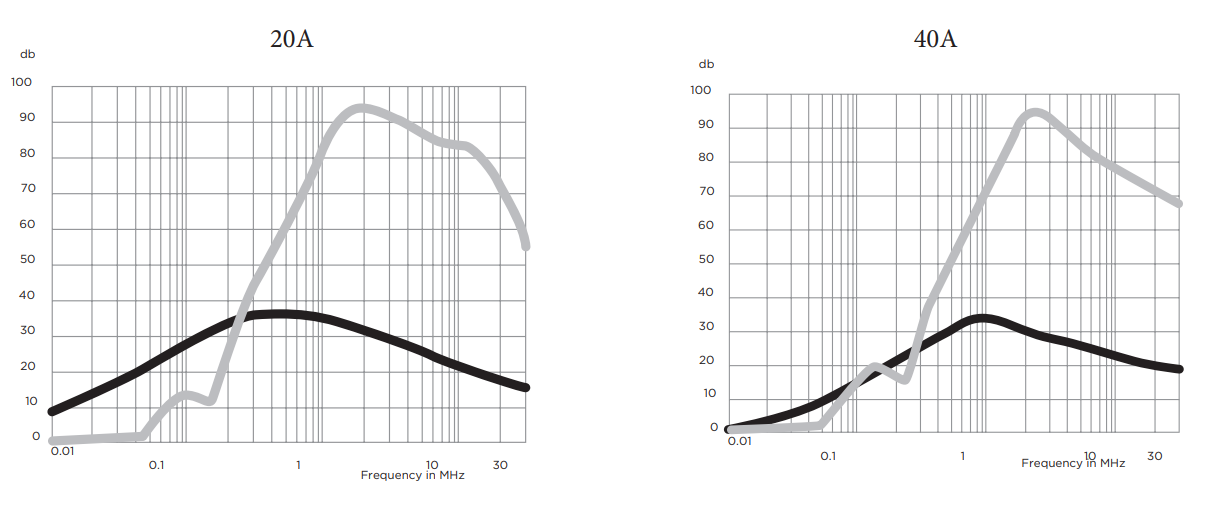

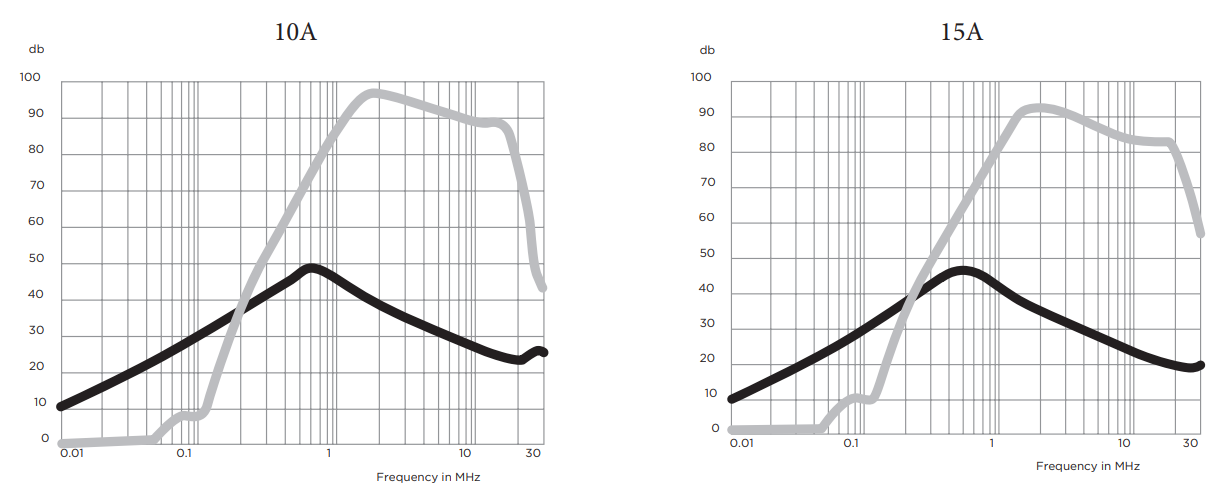

性能参数 Performance Data

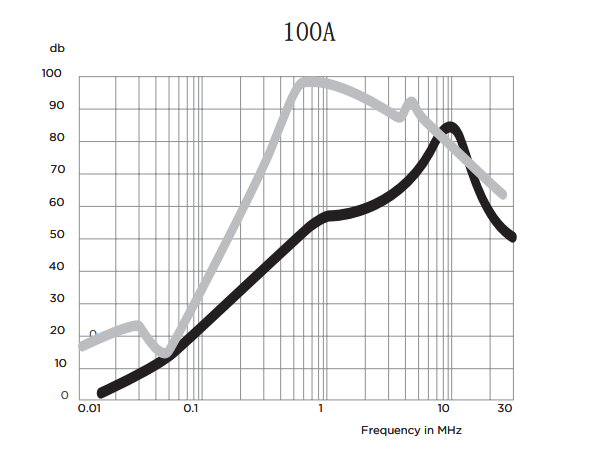

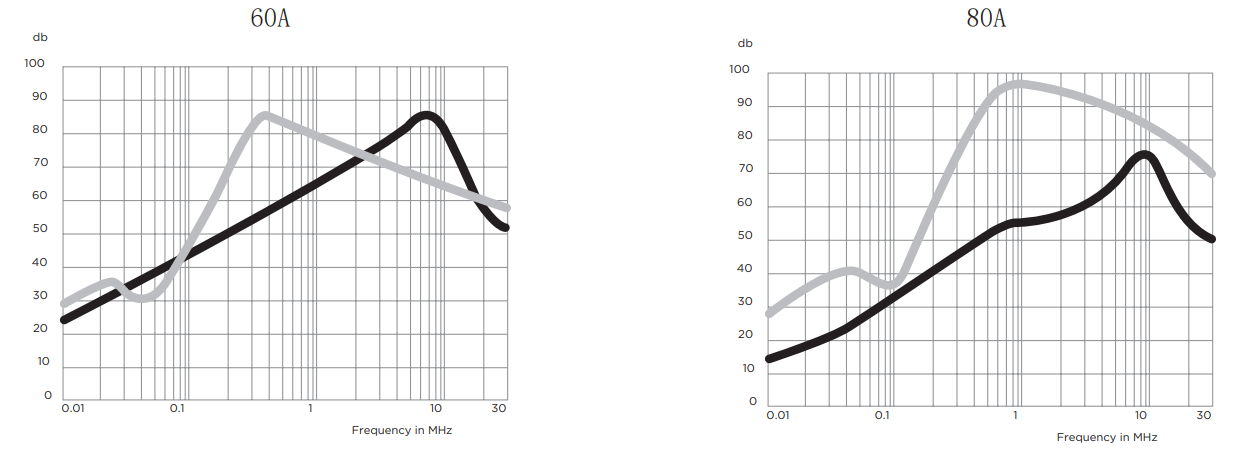

典型插入损耗
ypical Insertion Loss
在封闭的50欧姆系统中测量
Measured in closed 50 Ohm system

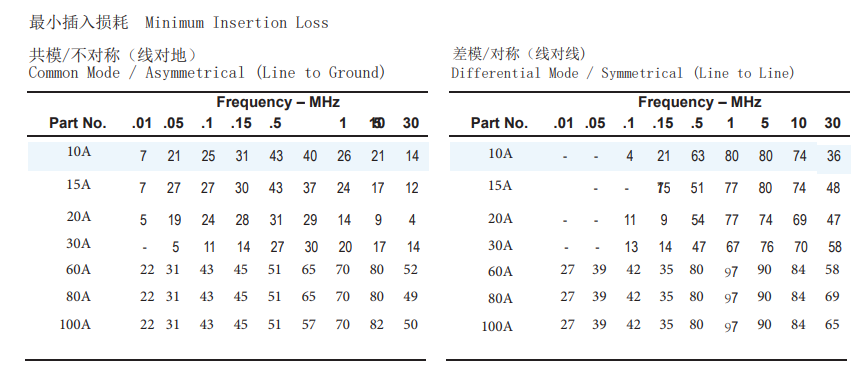

最小插入损耗 Minimum Insertion Loss
