产品详情
特点和应用：Features and Applications
适用于抑制电网及开关电源所产生的噪音和高频谐波
Applicable to suppressing noise and high frequency harmonic in power
较高的插入损耗，较小的泄露电流
Low leakage current with high insert lose of noise
能有效地抑制线与线，线与地之间的EMI噪音干扰
Control EMI interference between line to line，line to ground
小型电子设备和电子测量仪器、模块电源
Mini-electronic equipments and measuring instruments、module power supply

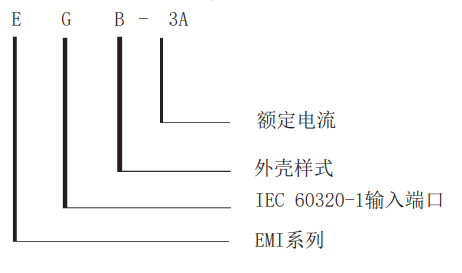

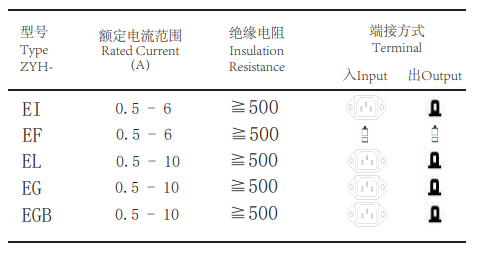

订购信息：Ordering Information
每条线路对地的最 大泄漏电流：
Maximum leakage current each Line to Ground：

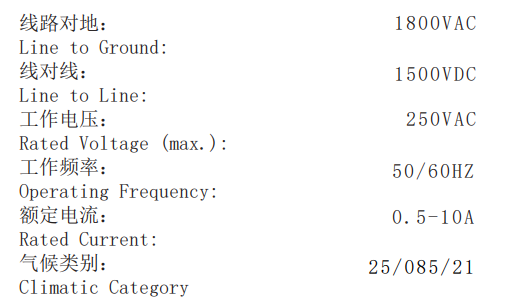

Hipot额定值（一分钟）：
Hipot rating (one minute):

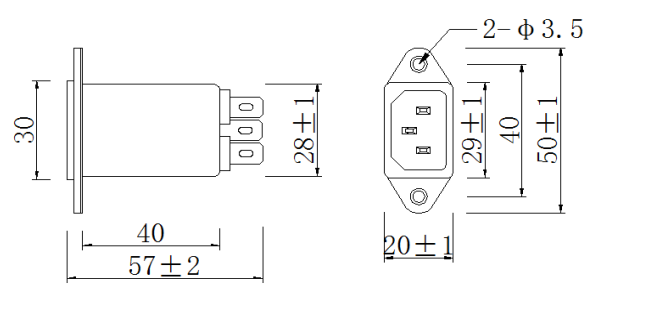

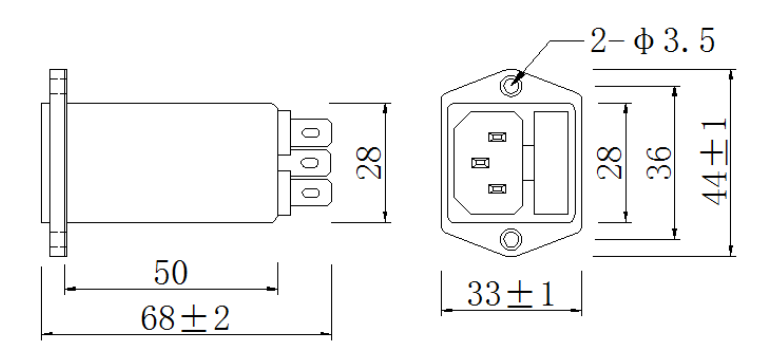

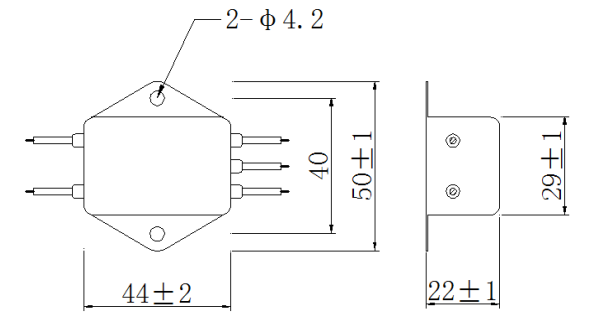

EI外壳样式：EICase Styles

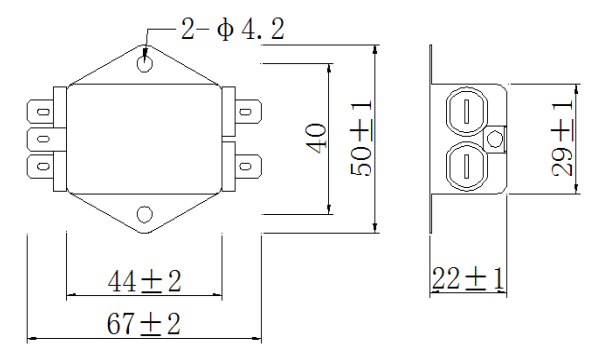

EF外壳样式：EFCase Styles

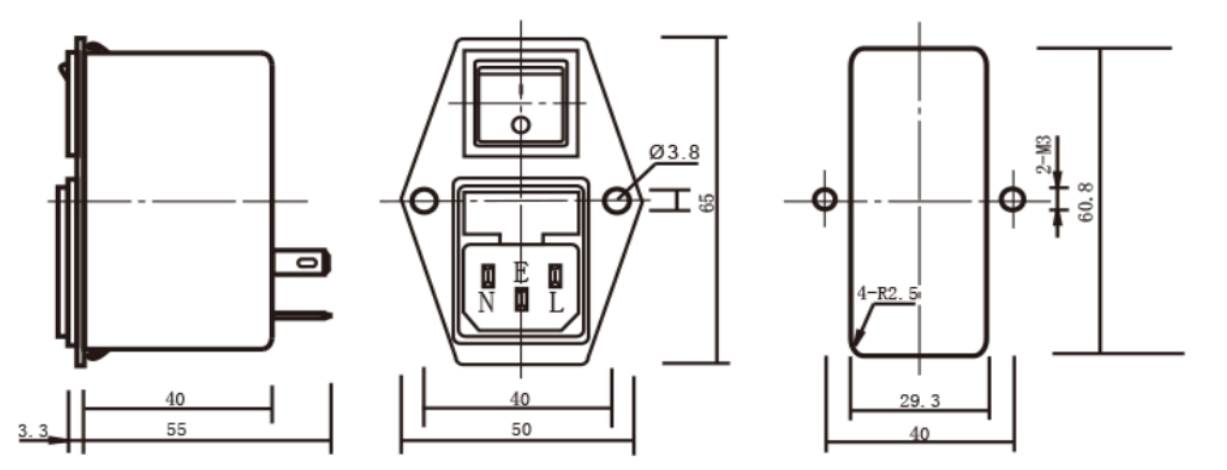

EL外壳样式：ELCase Styles
EG外壳样式：EG Case Styles
EGB外壳样式：EGBCase Styles
性能参数 Performance Data

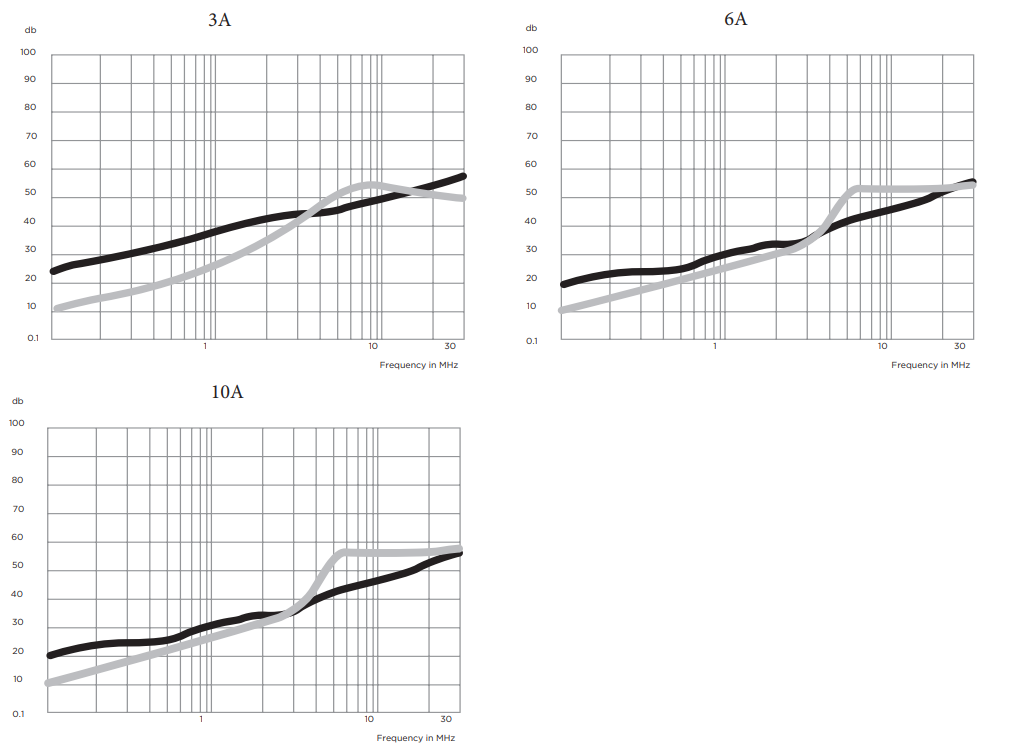

典型插入损耗
ypical Insertion Loss
在封闭的50欧姆系统中测量
Measured in closed 50 Ohm system

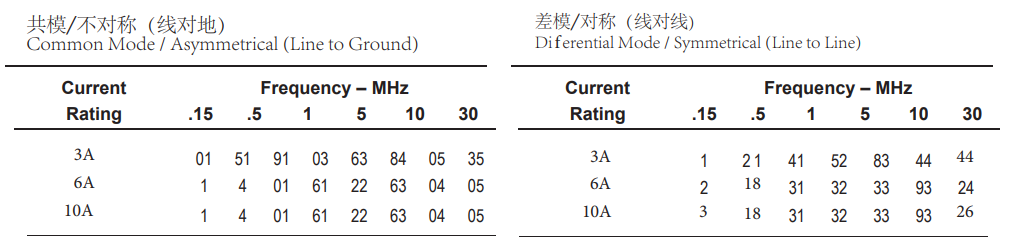

最小插入损耗 Minimum Insertion Loss
