特点和应用：Features and Applications

应用于380/440Vac三相四线连接的各类电源电子设备

Apply  in various electronical equipments powered byway of  three phases four wires

极佳的低频衰减特性，具有良好的共模和差模干扰抑制特性

High attenuation to low frequency,excellent  performance of common mode and differential mode  interference suppression

主要应用于高性能电源、变频器 电力监控,消防电子设备

Major in high-performance  power, transducer power control, fire electronic  equipment

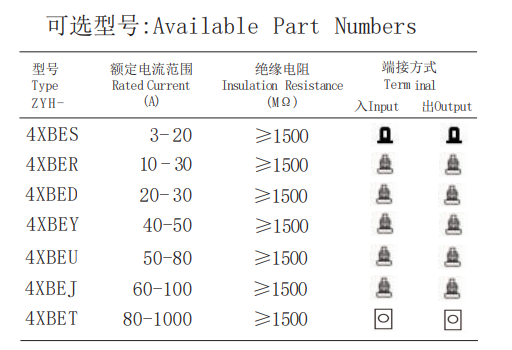

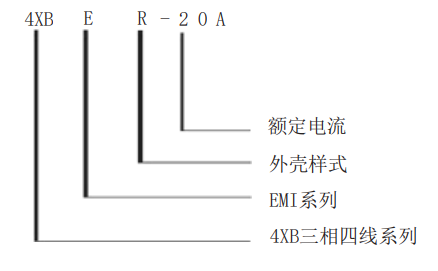

订购信息:Ordering Information

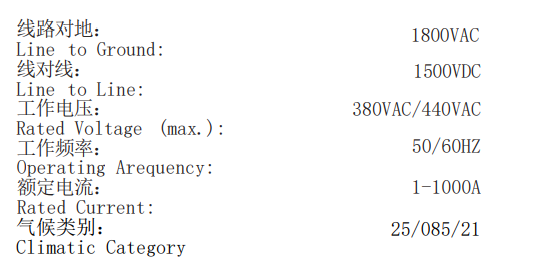

规格： Specifications

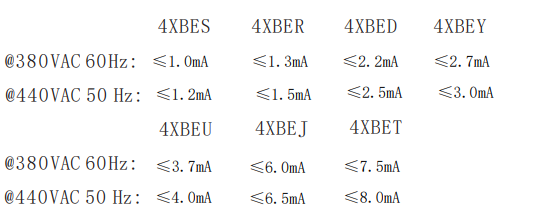

每条线路对地的最 大泄漏电流： Maximum leakage current each Line to Ground：

Hipot额定值（一分钟）：

Hipot rating (one minute):

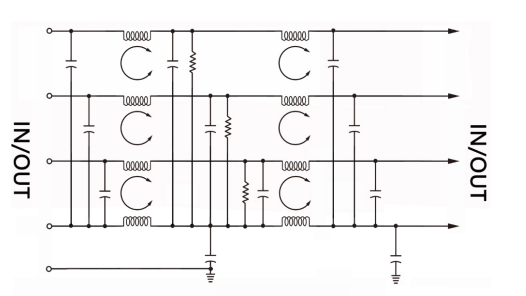

电路原理图Electrical Schematics

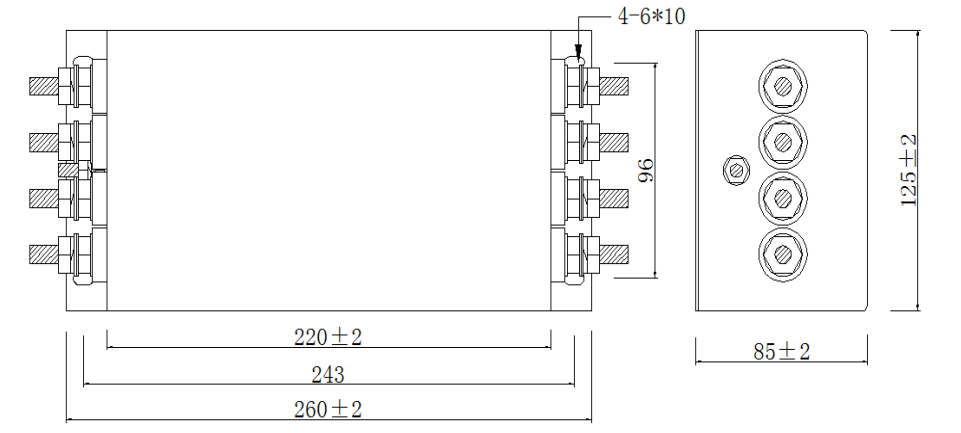

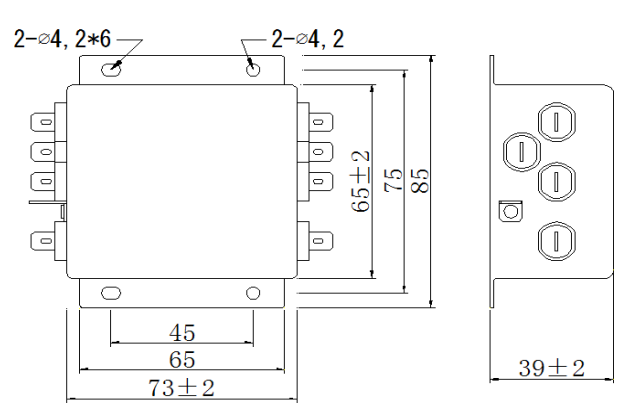

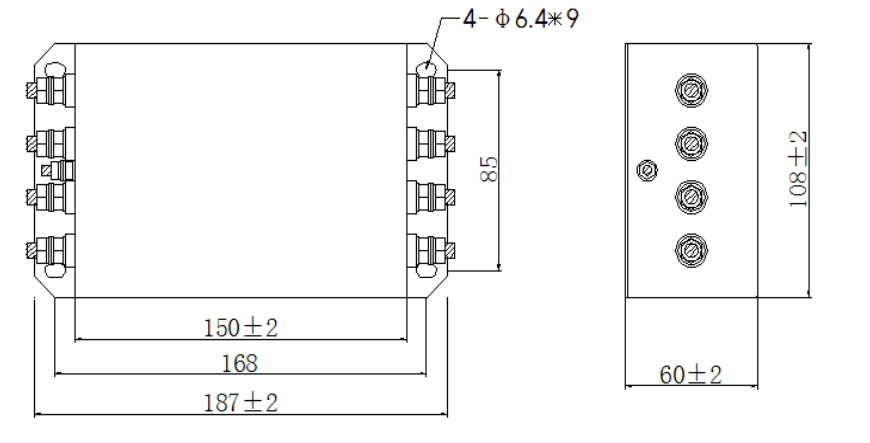

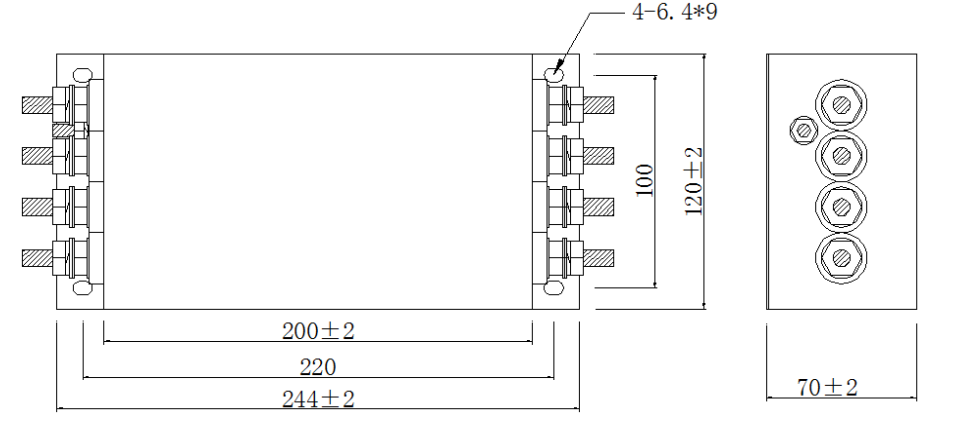

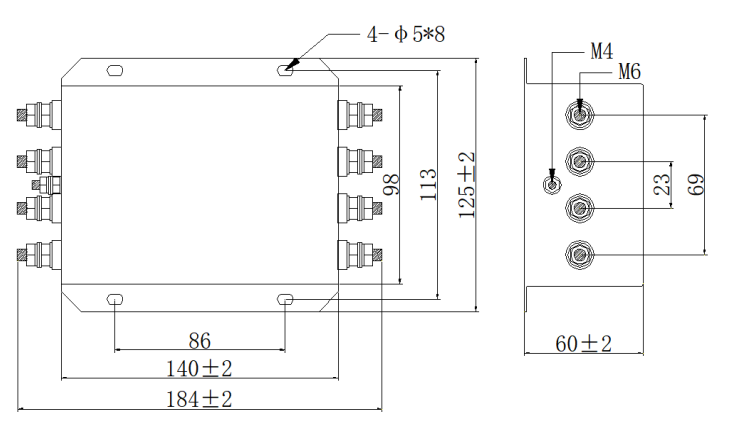

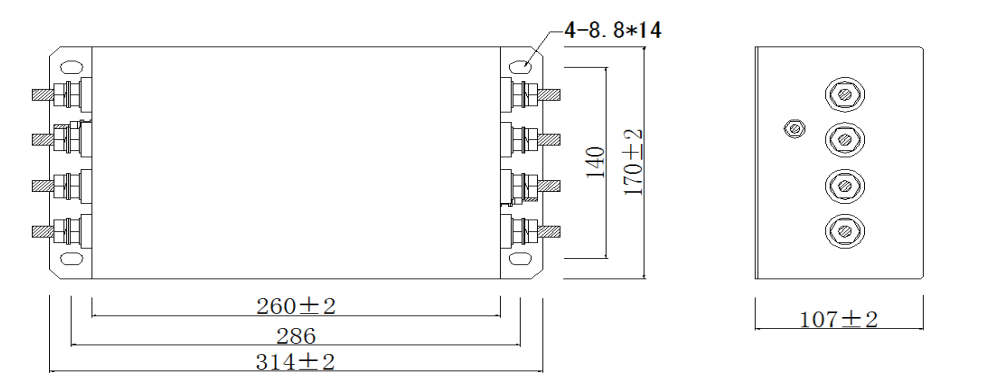

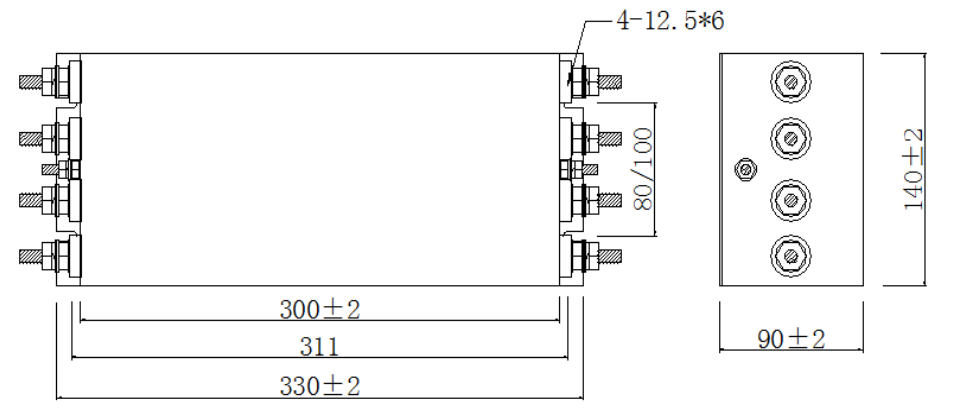

4XBES 外壳样式：4XBES Case Styles

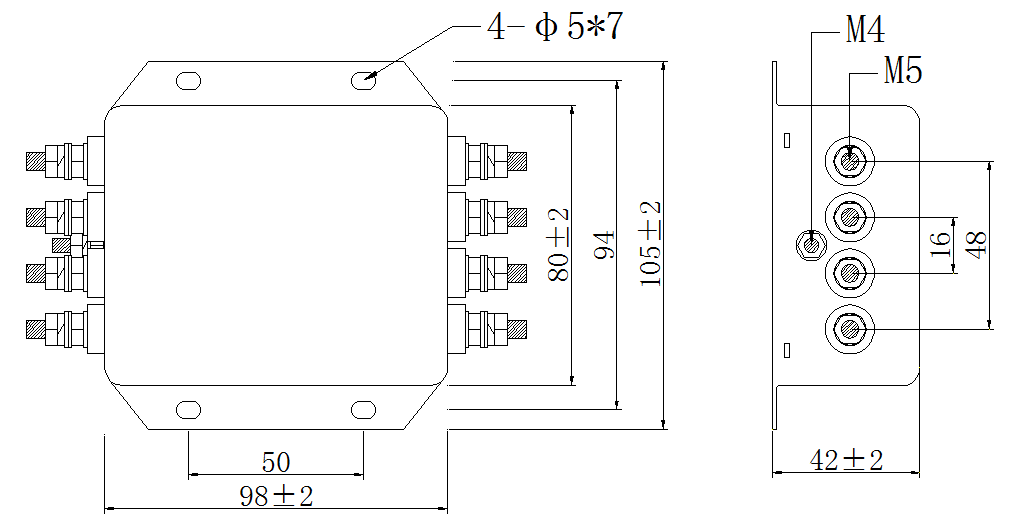

4XBER外壳样式：4XBER Case Styles

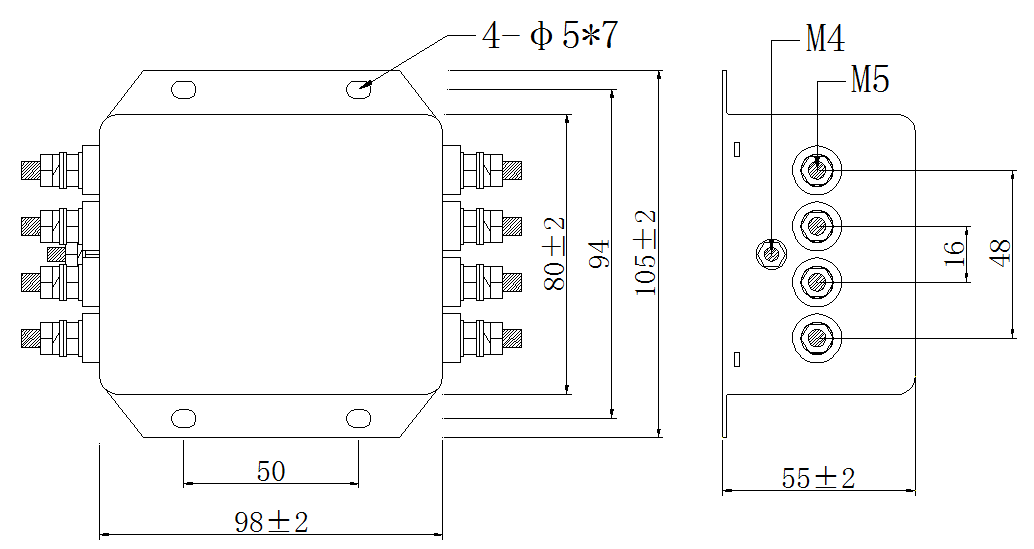

4XBED外壳样式：4XBED Case Styles

4XBEY外壳样式：4XBEY Case Styles

4XBEU外壳样式：4XBEU Case Styles

样式1：Case Styles one

样式2：Case Styles Two

样式3：Case Styles Three

4XBEJ外壳样式：4XBEJ Case Styles

样式1：Case Styles one

样式2：Case Styles Two

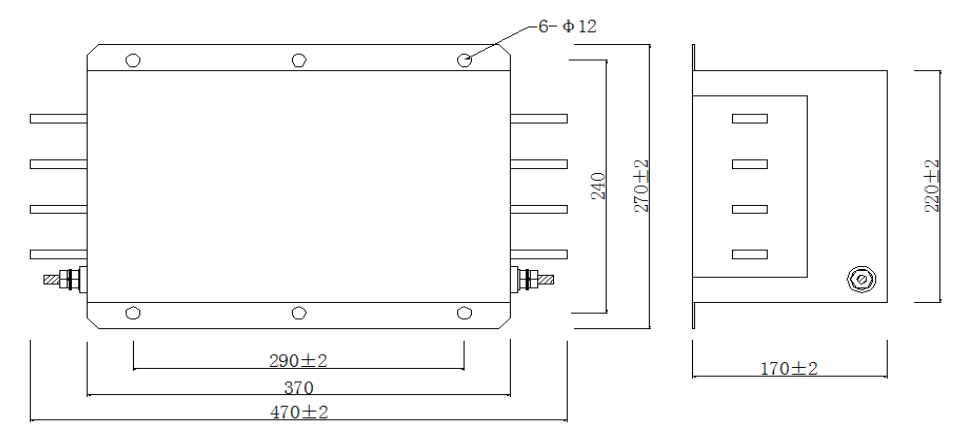

4XBET外壳样式：4XBET Case Styles

性能参数 Performance Data

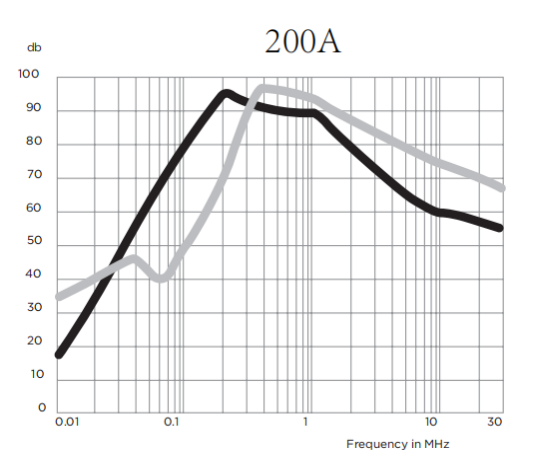

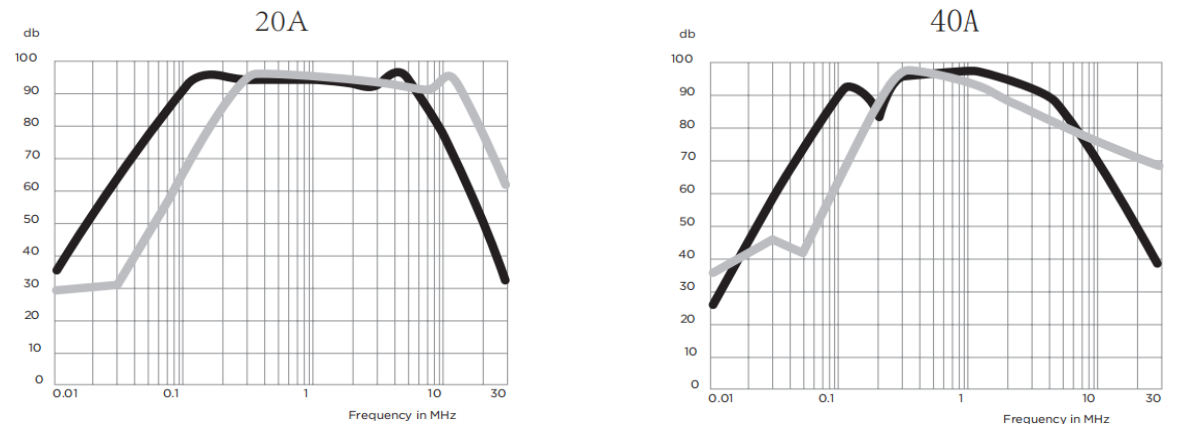

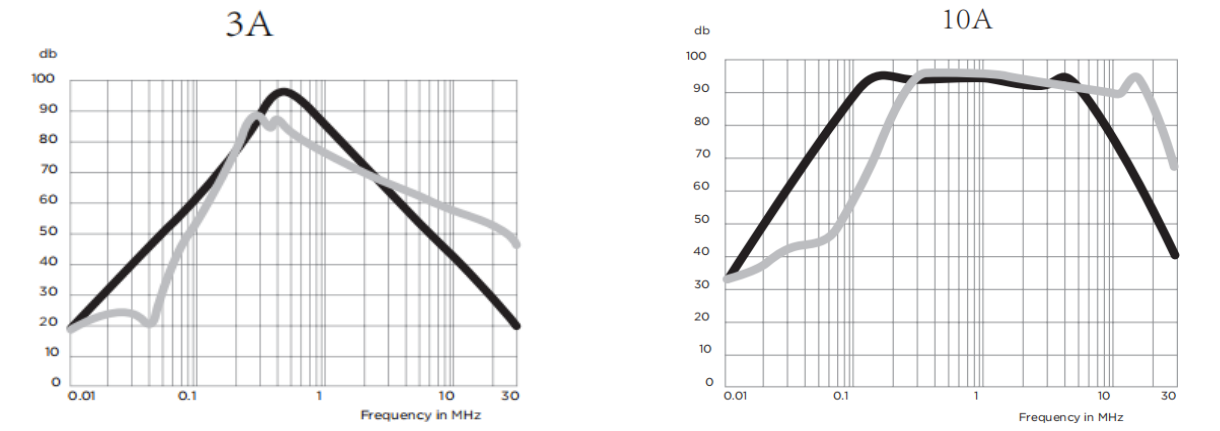

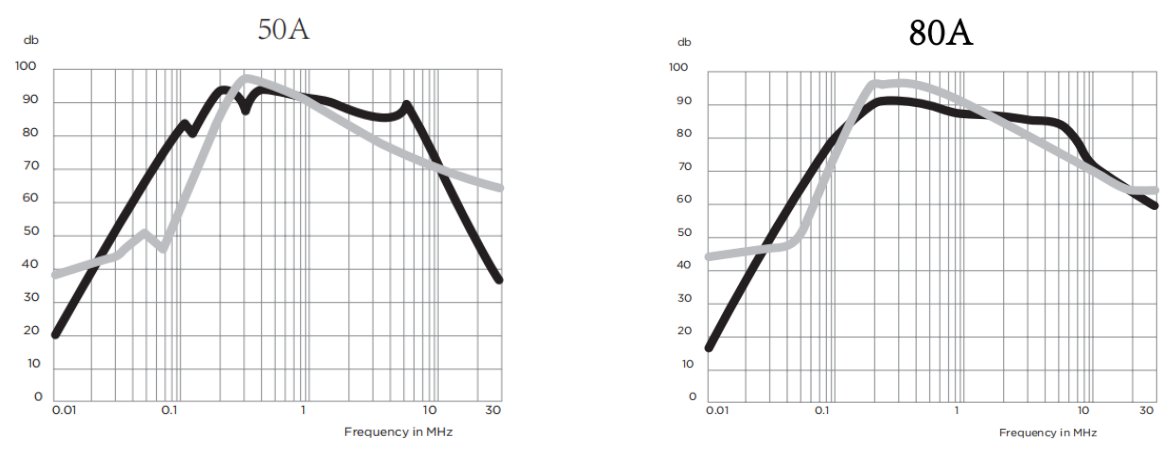

典型插入损耗 ypical Insertion Loss

在封闭的50欧姆系统中测量 Measured in closed 50 Ohm system

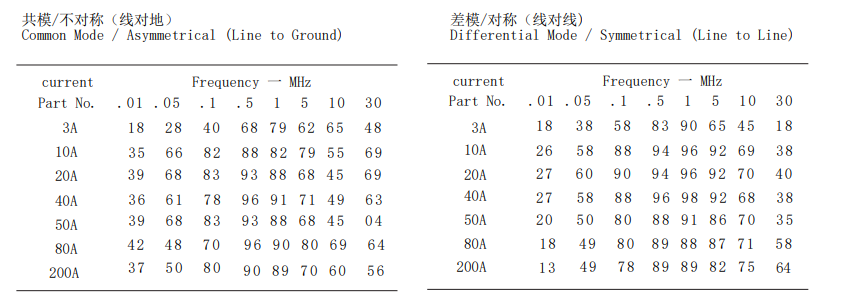

最小插入损耗 Minimum Insertion Loss

ZYH-4XB系列三相四线高插损差模增强型EMI电源滤波器.pdf
