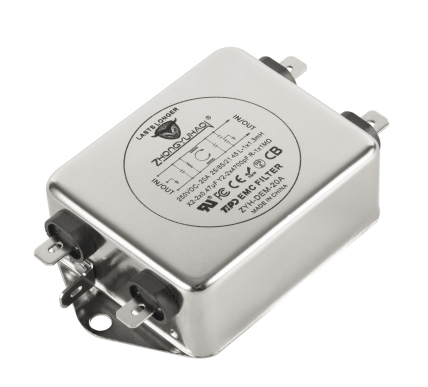

特点和应用：Features and Applications

主要应用于直流电源线的电磁干扰

Main DC power cord to the electromagnetic  interference

在很宽的频带（10KHz—30MHz)范围内具有优良的共模和 差模插入损耗

Suppressing both CM and DM in a wide frequency  range

范围内具有优良的共模和差模插入损耗

Suppressing both  CM and DM in a wide frequency range (10KHz-30MHZ)

高性能、低温升、低价格

High-performance, low-temperature rise, low prices

可协助使用直流电源的各类电子设备达到VDE和FCC等标准

To ensure the use of direct current power supply  to the various electronic equipment such as VDE  and FCC standards

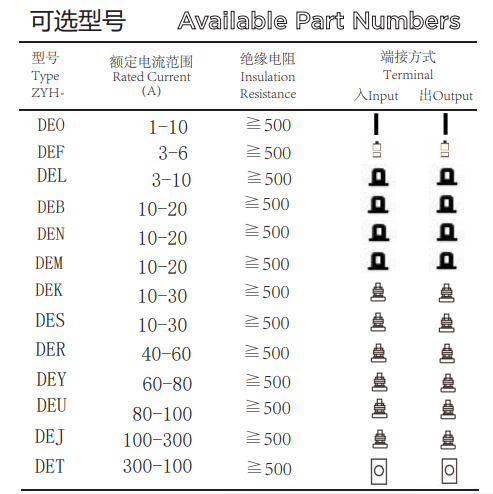

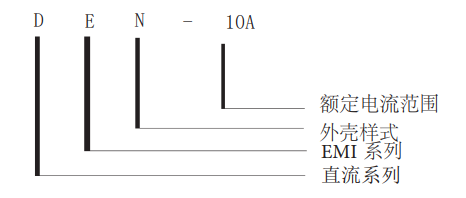

订购信息：Ordering Information

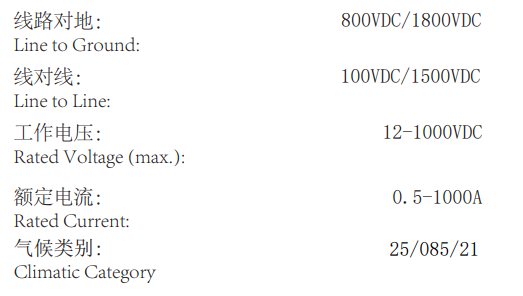

规格： Specifications

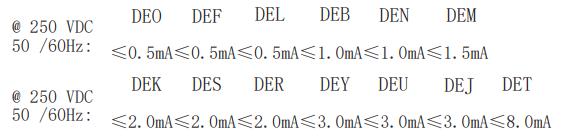

每条线路对地的最 大泄漏电流：

Maximum leakage current each Line to Ground：

Hipot额定值（一分钟）：

Hipot rating (one minute):

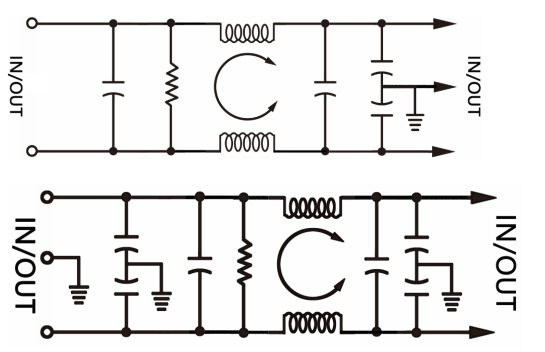

电路原理图Electrical Schematics

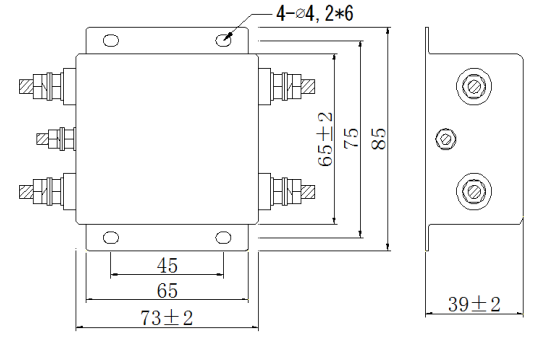

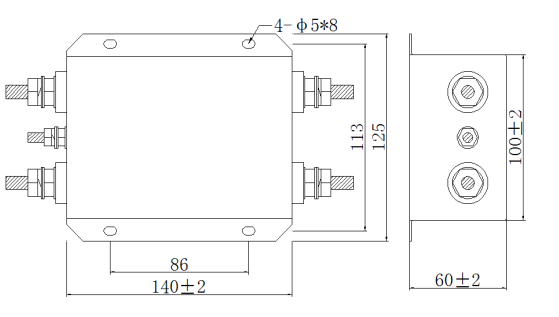

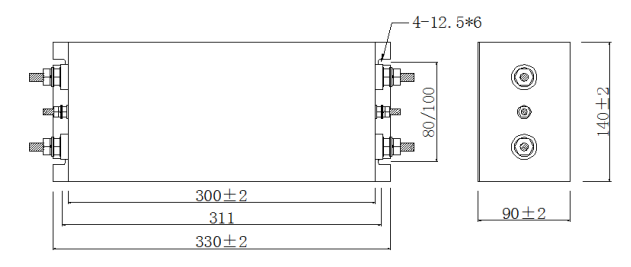

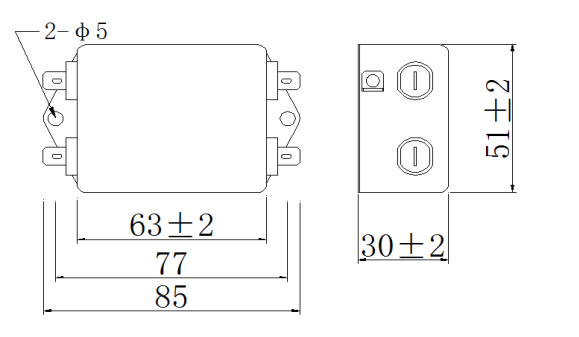

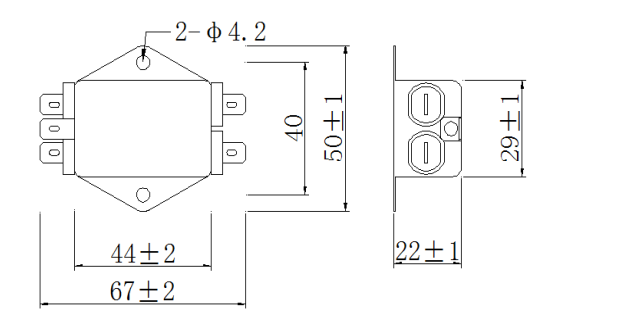

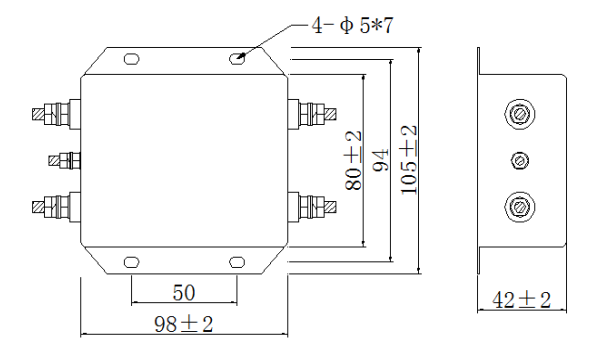

DEO外壳样式：DEO Case Styles

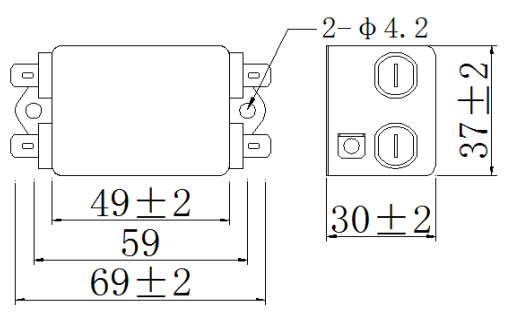

样式1：CaseStyles One

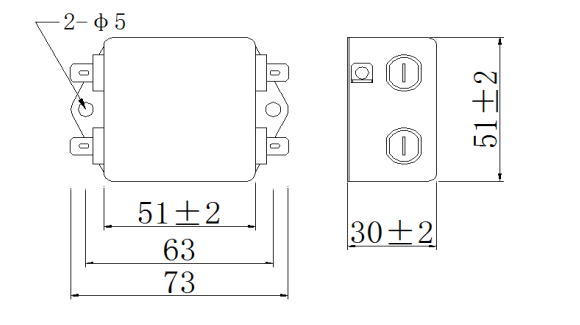

样式2：CaseStyles Two

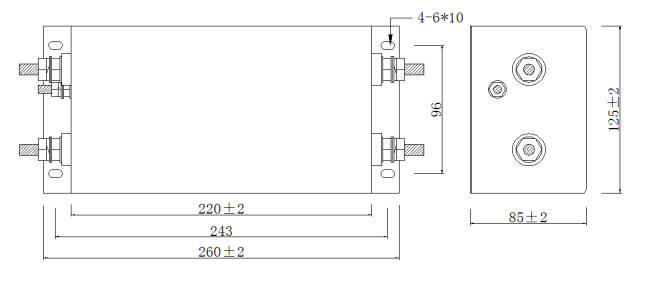

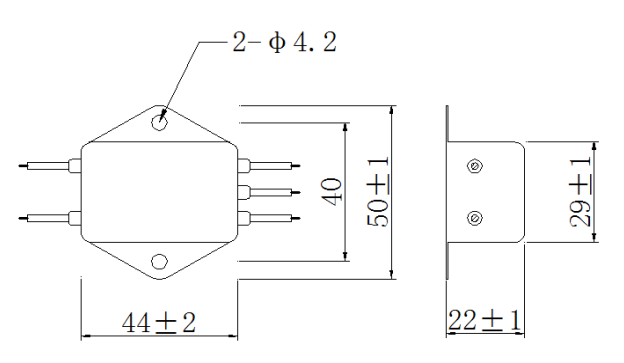

DEL外壳样式：DEL Case Styles

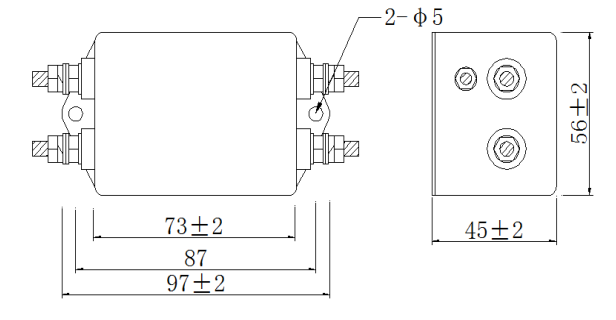

DEF外壳样式：DEF Case Styles

DEB外壳样式：DEB Case Styles

DEN外壳样式：DEN Case Styles

DEM外壳样式：DEM Case Styles

DEK外壳样式：DEK Case Styles

DES外壳样式：DES Case Styles

DER外壳样式：DER Case Styles

DEY外壳样式：DEY Case Styles

DEU外壳样式：DEU Case Styles

DEJ外壳样式：DEJ Case Styles

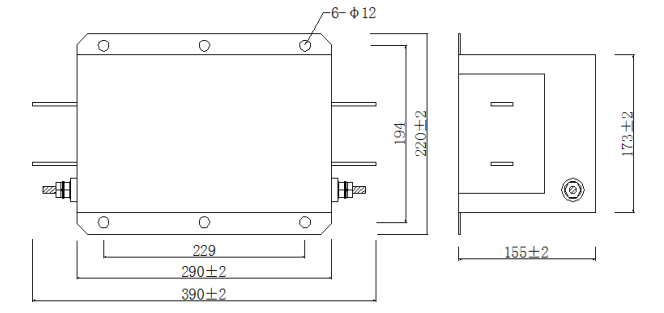

DET外壳样式：DET Case Styles

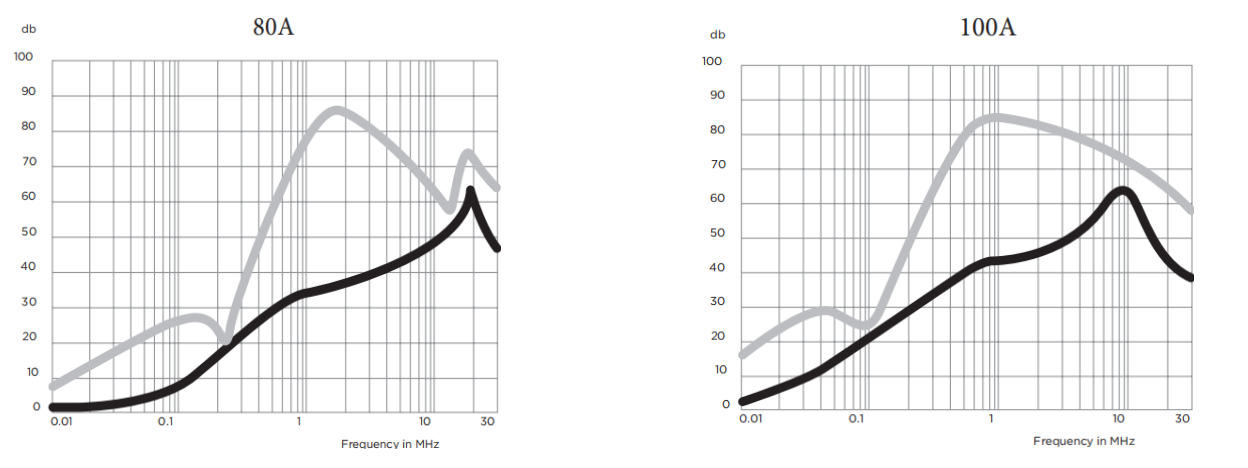

性能参数 Performance Data

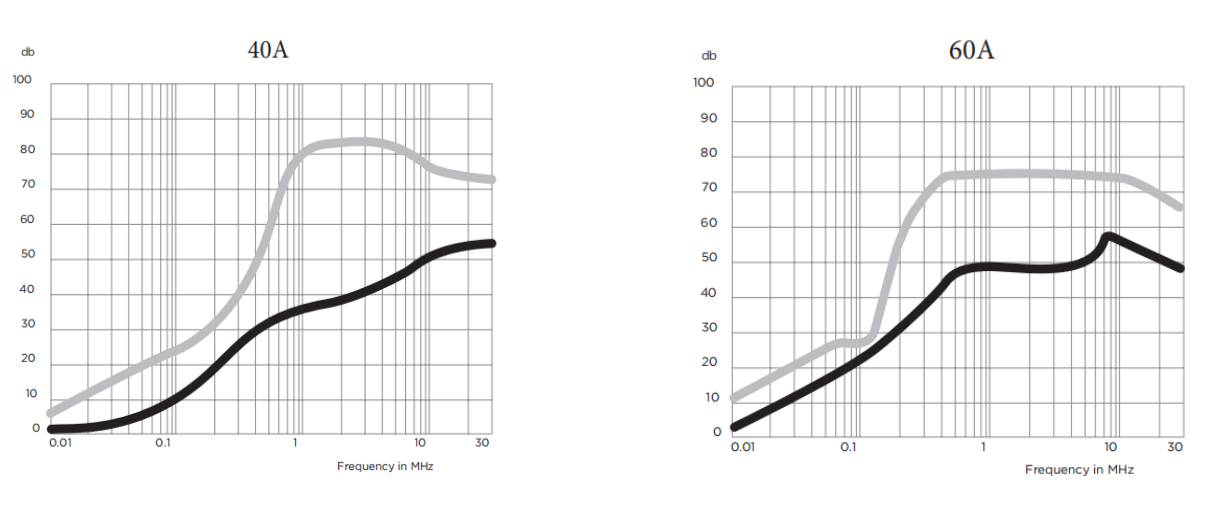

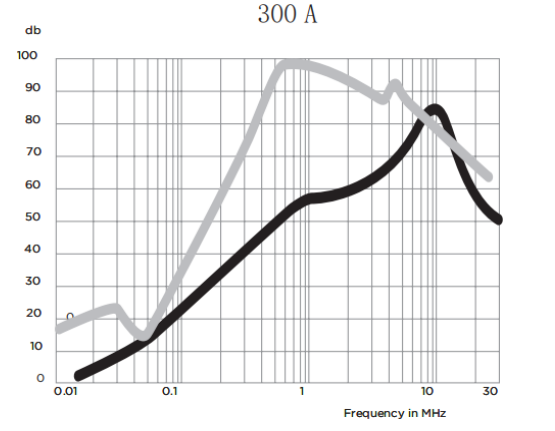

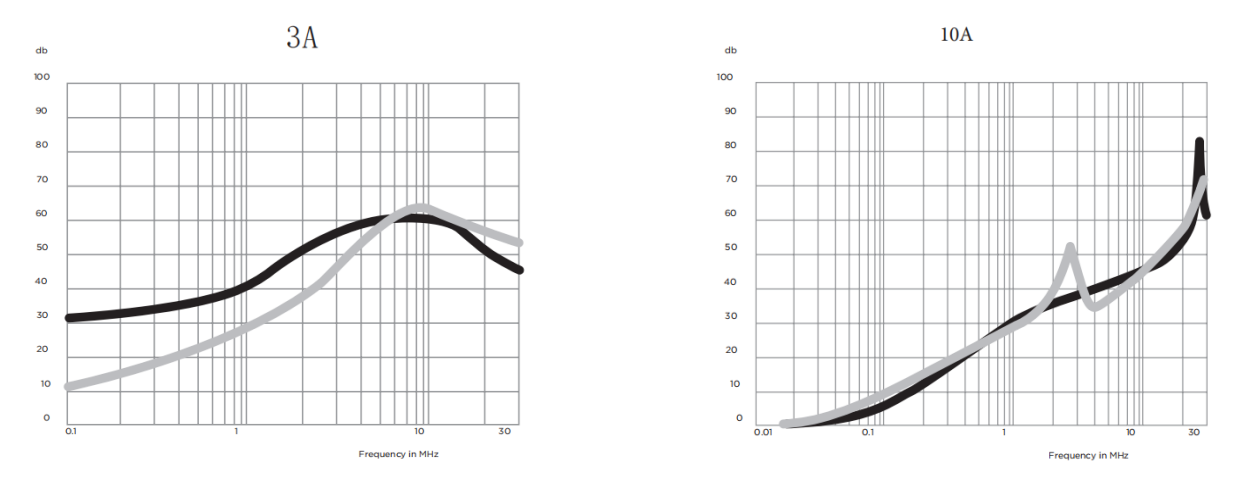

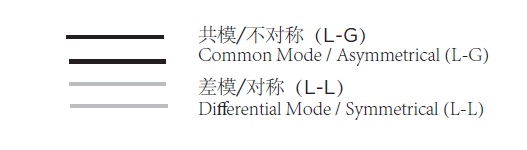

典型插入损耗

ypical Insertion Loss

在封闭的50欧姆系统中测量

Measured in closed 50 Ohm system

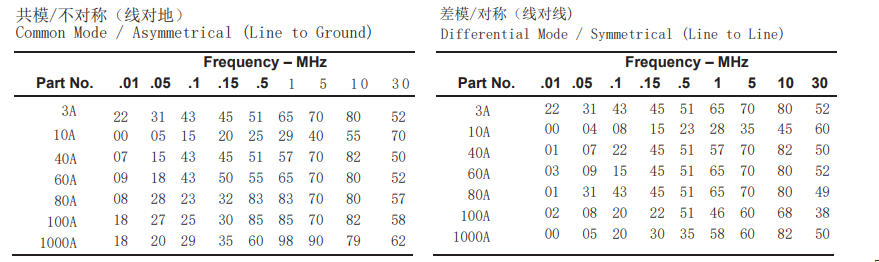

最小插入损耗 Minimum Insertion Loss

ZYH-D系列直流EMI电源滤波器(3).pdf
