特点和应用：Features and Applications

价格低廉,安装方便，可直接应用与PCB板上

lnstallation convenience, and can be directly  appliedon PCB with cheap price

 滤波频率130MHZ以上时，优于表面安装器件

Filter frequency 130MHZ above, the superior  surfaceinstalled devices

适用于电信设备、线性电源放大器、中继器、医疗设备、 遥感器、计算机等电子产品的滤波

Apply to telecommunications equipment, linear  poweramplifiers, repeaters, medical equipment,  remote sensors,computers and other electronic products

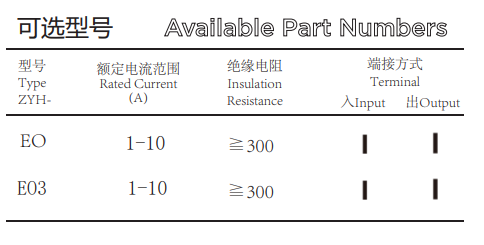

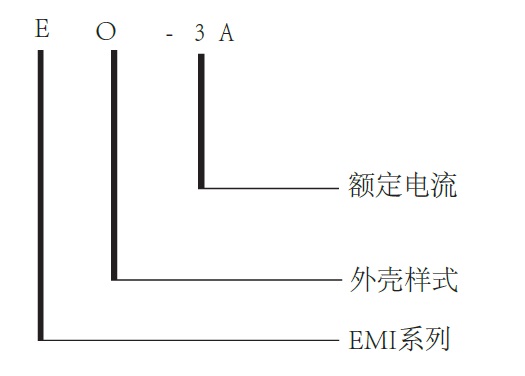

订购信息：Ordering Information

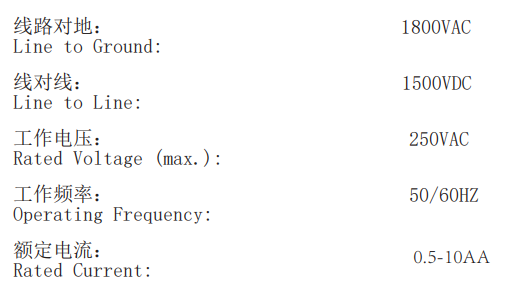

规格： Specifications

每条线路对地的最 大泄漏电流： Maximum leakage current each Line to Ground：

Hipot额定值（一分钟）：

Hipot rating (one minute):

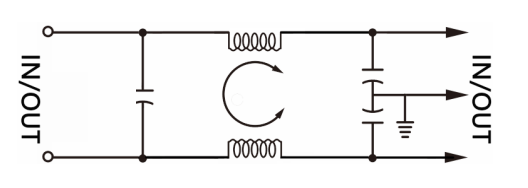

电路原理图Electrical Schematics

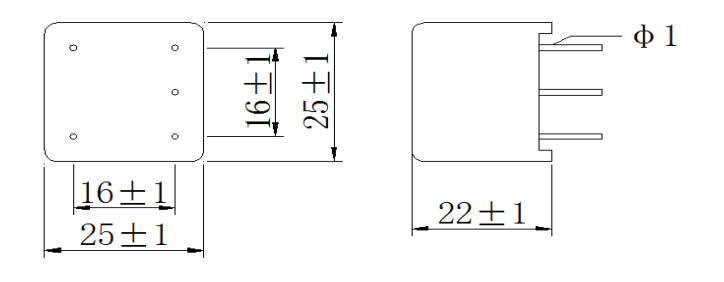

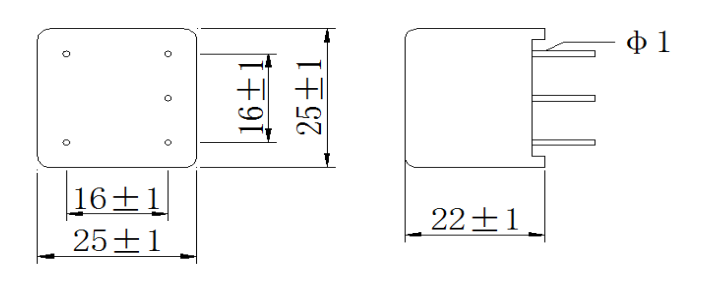

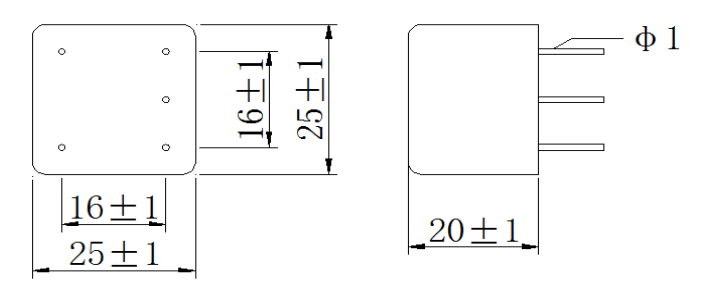

EO外壳样式：EO Case Styles

样式1：Case Styles One

样式2：Case Styles Two

样式3：Case Styles Three

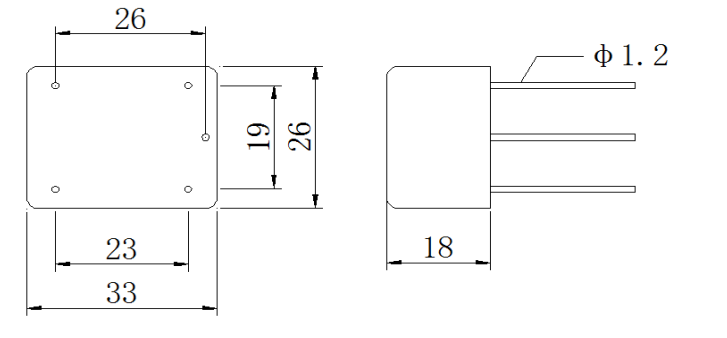

EO3外壳样式：EO3 Case Styles

性能参数 Performance Data

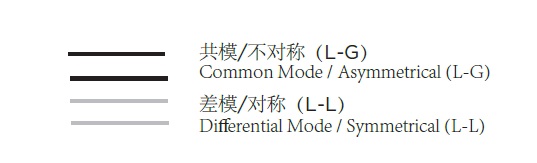

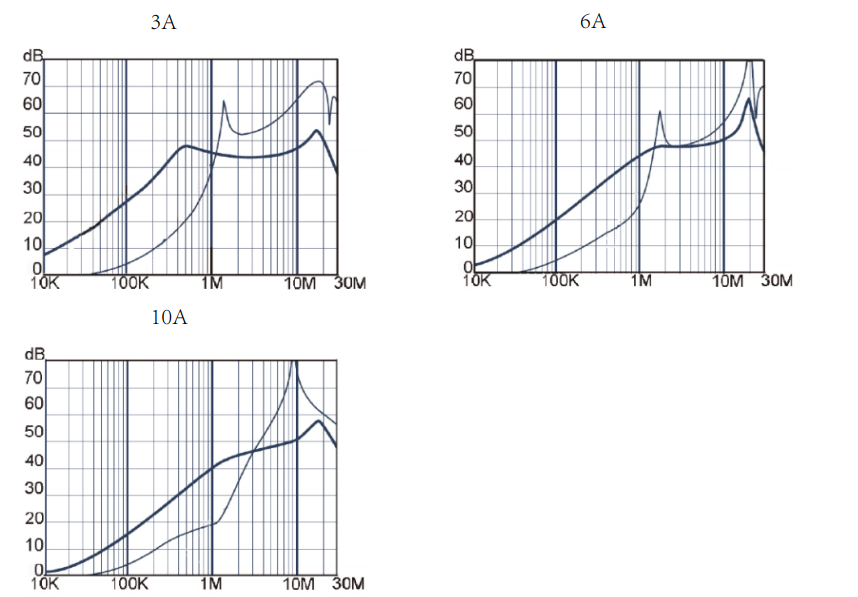

典型插入损耗 ypical Insertion Loss

在封闭的50欧姆系统中测量 Measured in closed 50 Ohm system

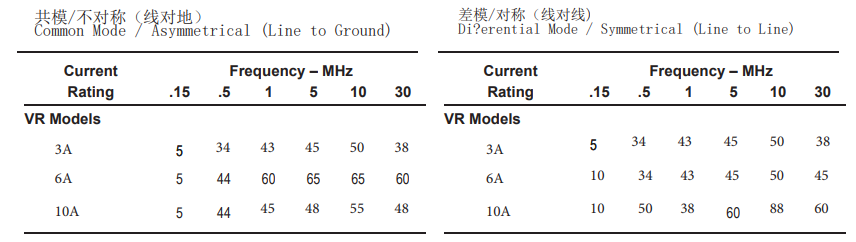

最小插入损耗 Minimum Insertion Loss
